E-QD09

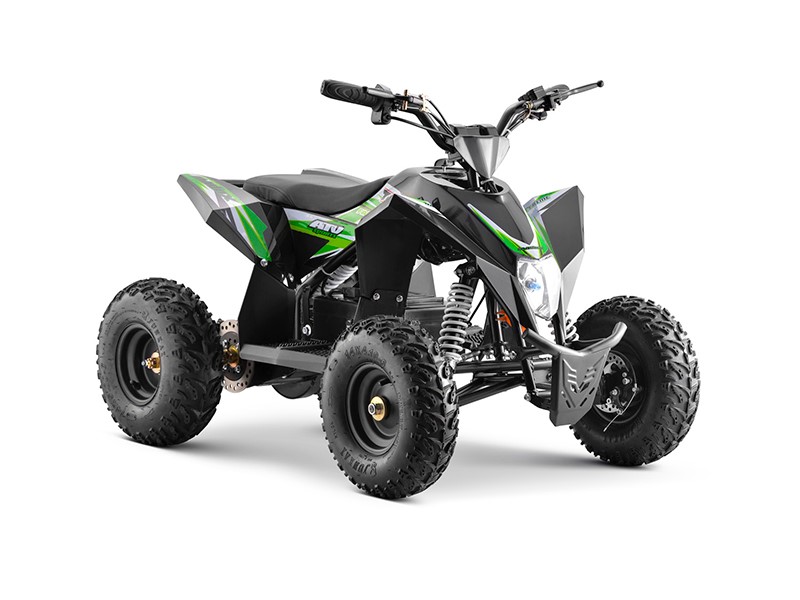

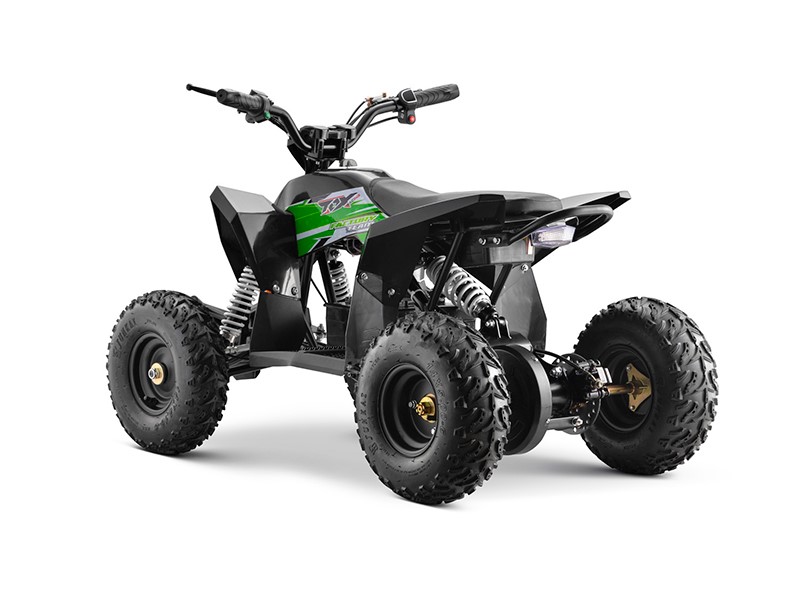

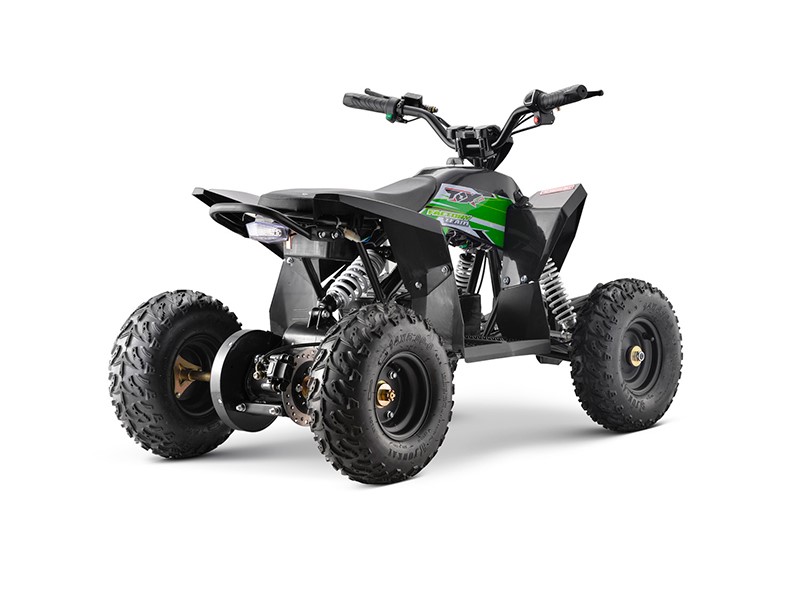

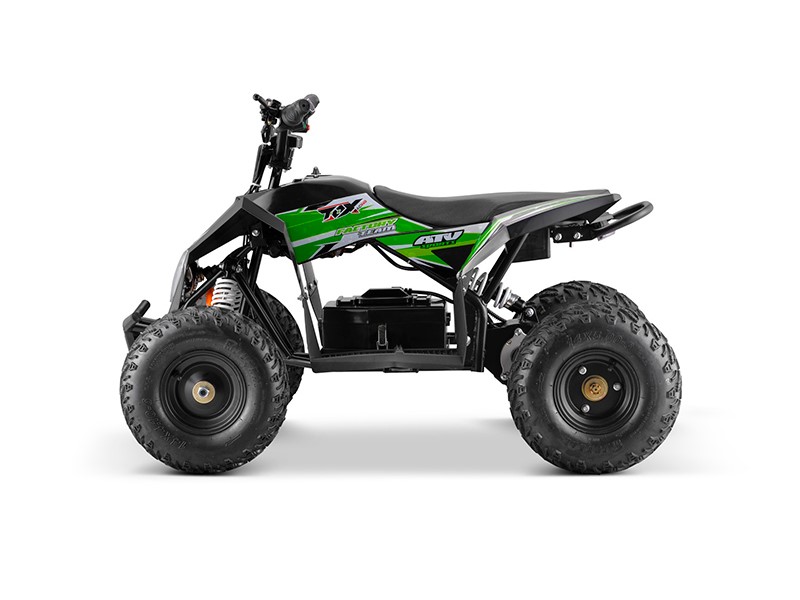

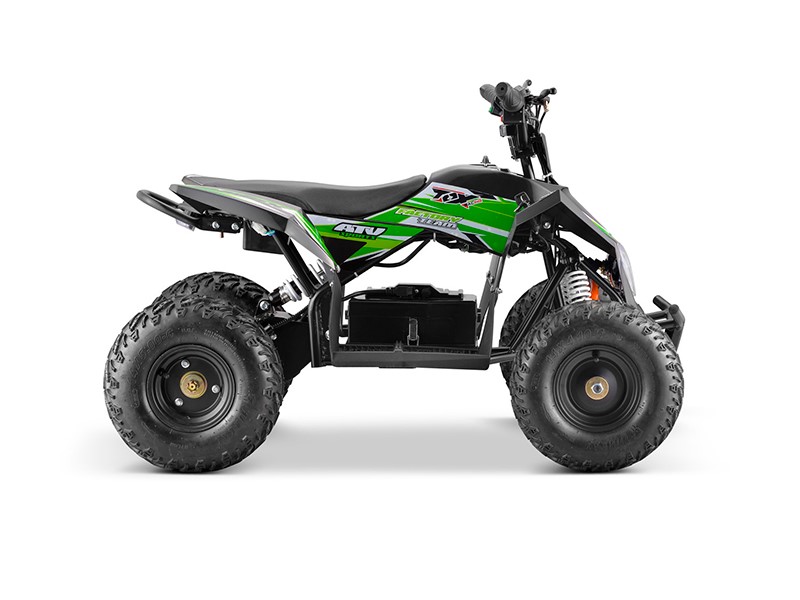

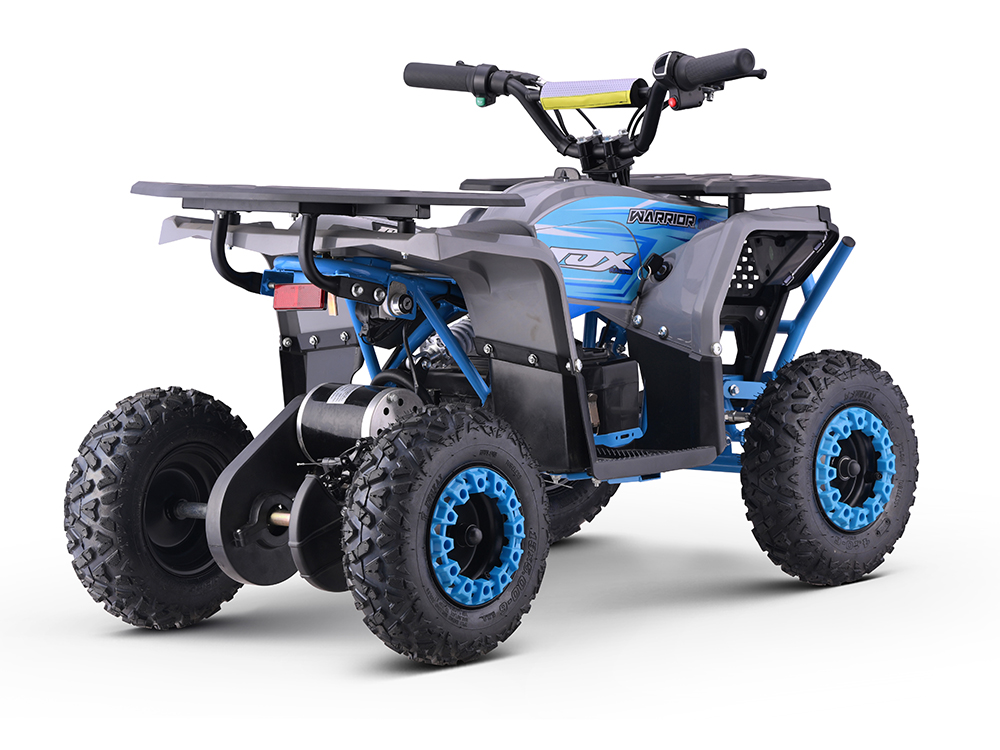

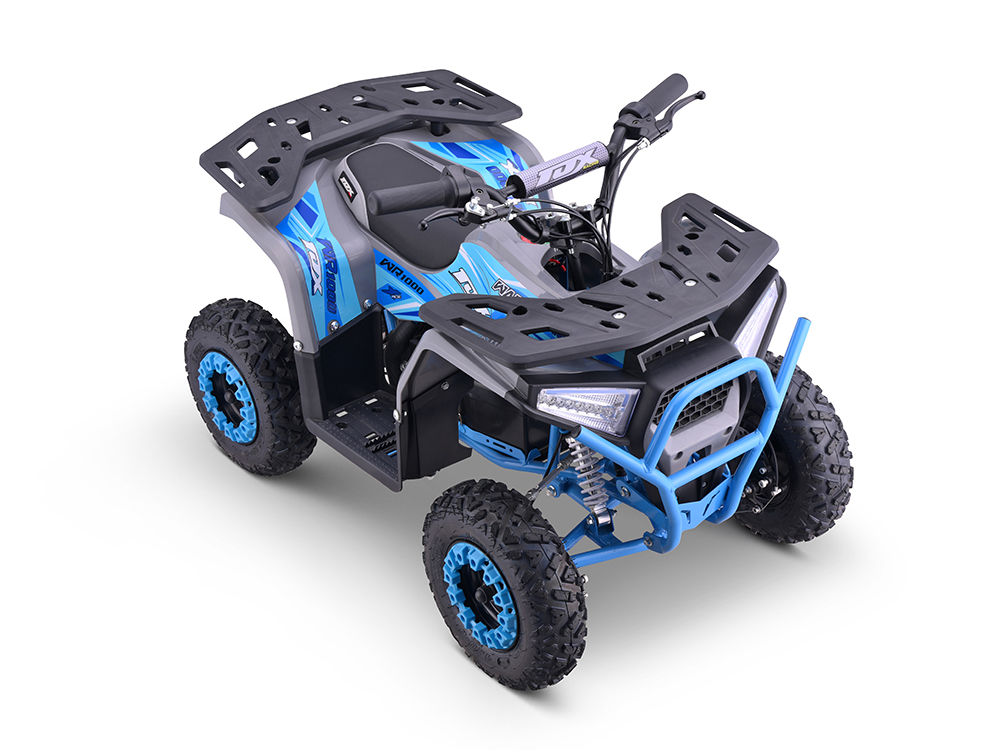

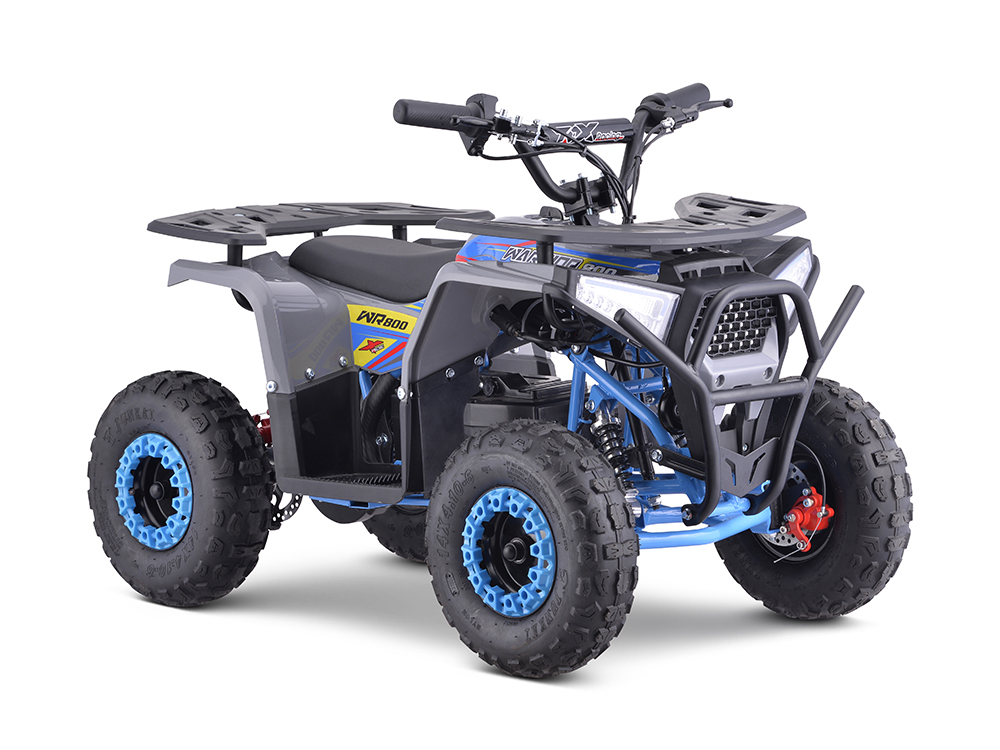

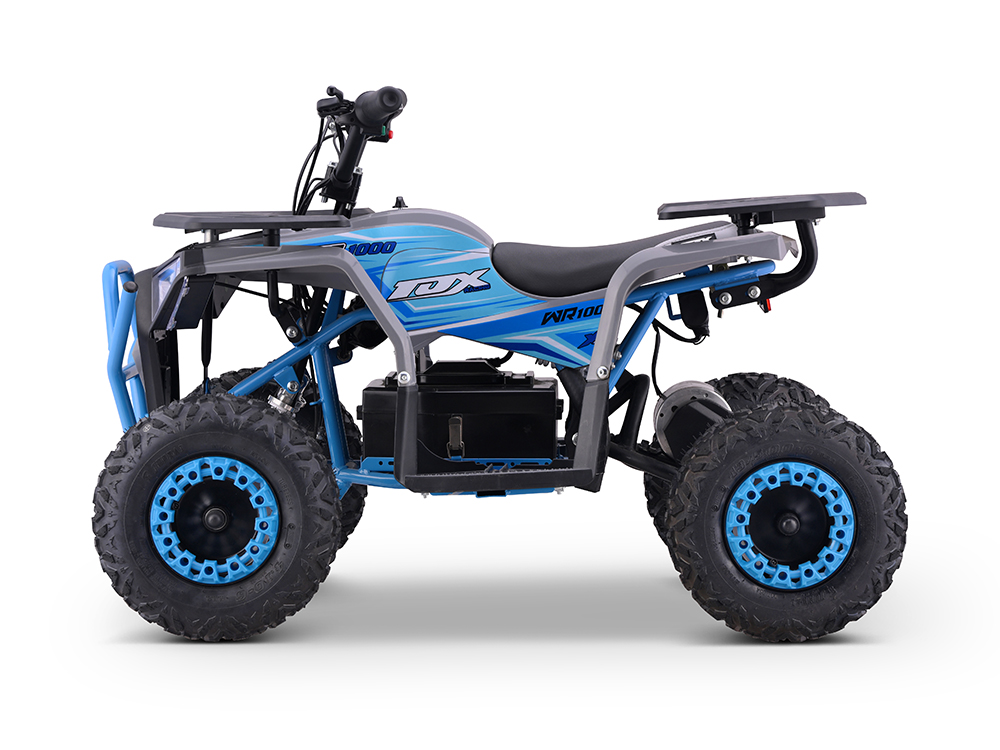

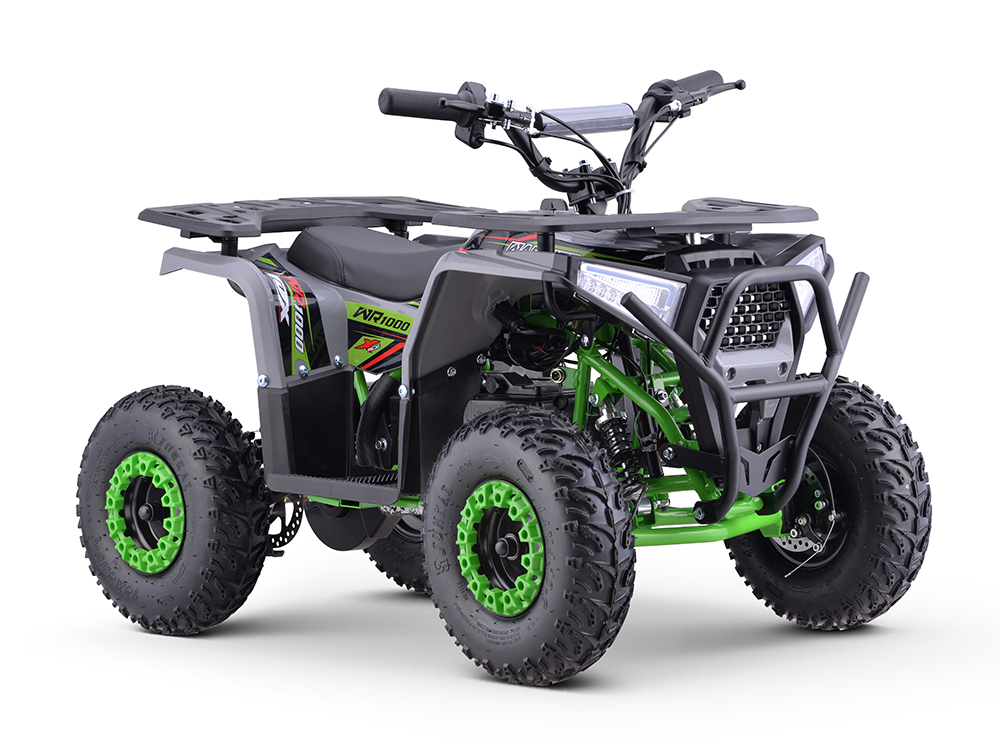

Electric ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| E-motor | 800W 36V DC motor |
| Optional E-motor | 1000W 36V |
| Battery | 3*12V 12AH lead acid |
| Optional battery | 36V 13Ah lithium |
| Charger for 36V lead acid battery | 43.2V/1.5A |
| Charger for 36V lithium battery | 42.0V/2.0A |
| Final drive | 9T / 72T, 25H# chain |
| Transmission | forward & reverse, 3 speed adjustable |
| Range per full charge | 12AH lead acid battery: ~13KM 13AH lithium battery: ~16KM |

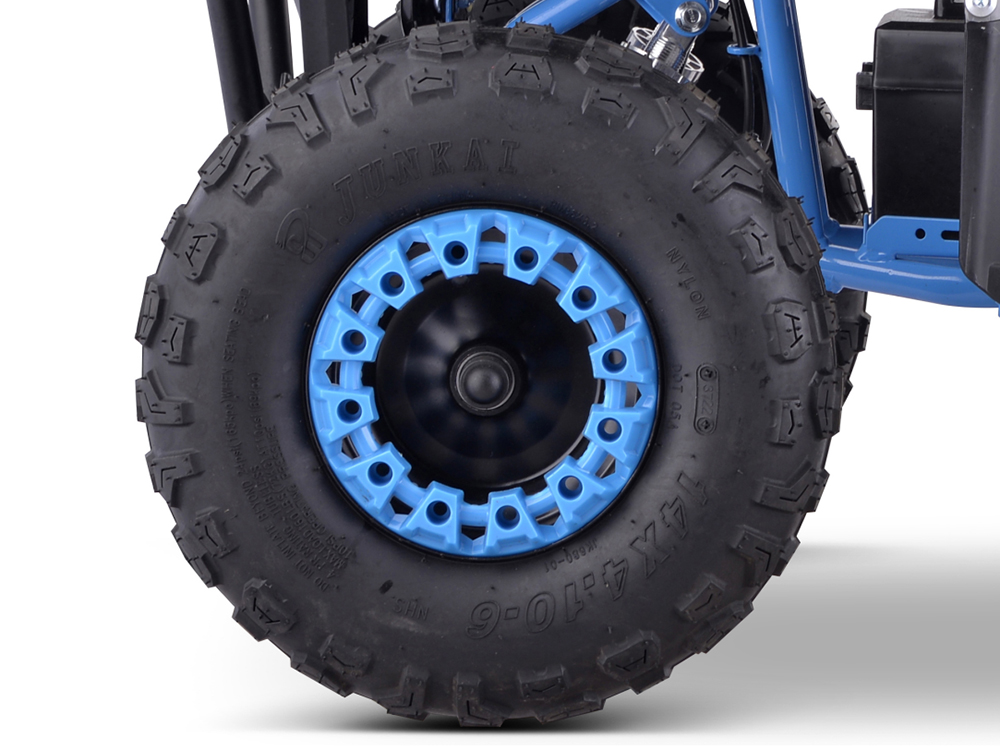

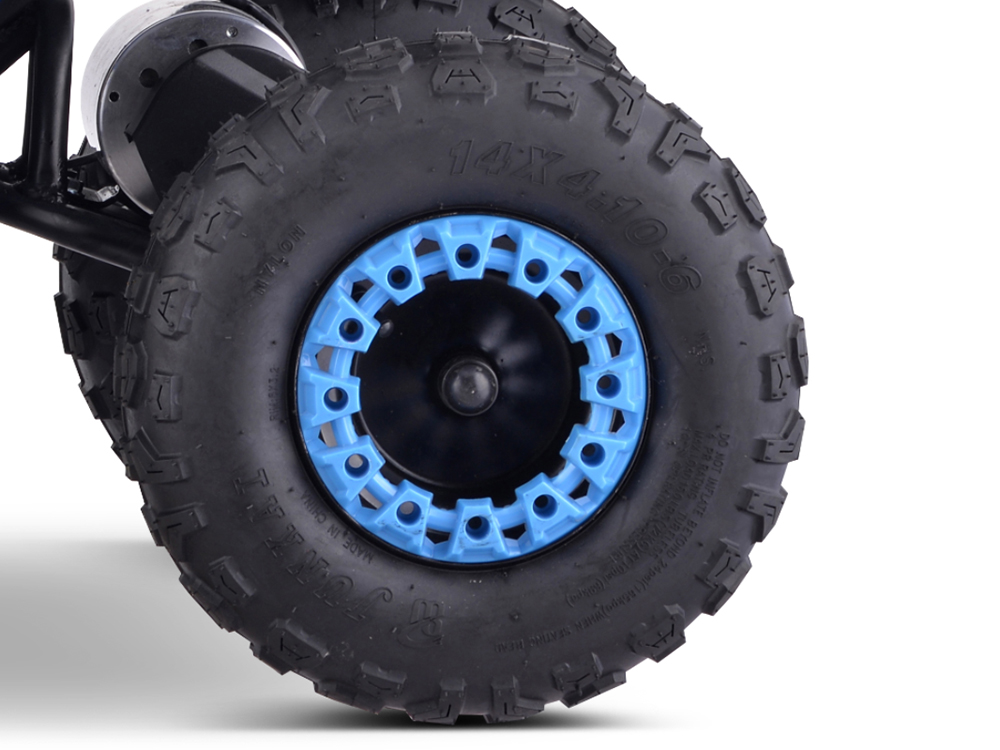

| Wheel & tires | high strength steel rim, 6" |
| Tire | front 4.10-6" / rear 13*5.00-6 |
| Max. speed | 22kmph |
| Max load capacity | 60kgs |
| Brake system | front & rear mechanical disc brake |
| Suspension | front A swing arm, rear mono shock |
| Dimension ( L*W*H) | 1090*625*710mm |
| Wheelbase | 730mm |
| Seat height | 490mm |
| Min ground clerance | 140mm |
| Dry weight | 52.5kgs lead acid battery 44kgs lithium battery |
| Carton size | 1060*620*520mm |
| QTY/Container | 79pcs/20ft 200pcs/40HQ |
