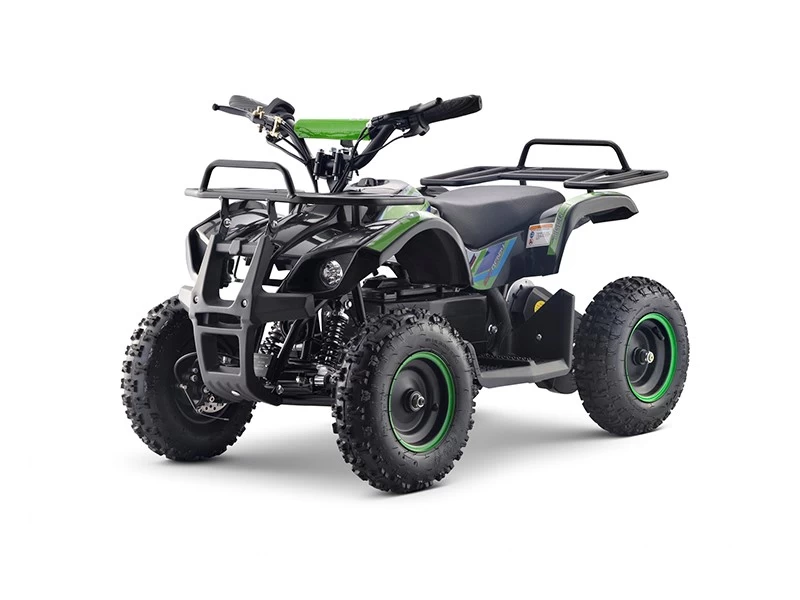

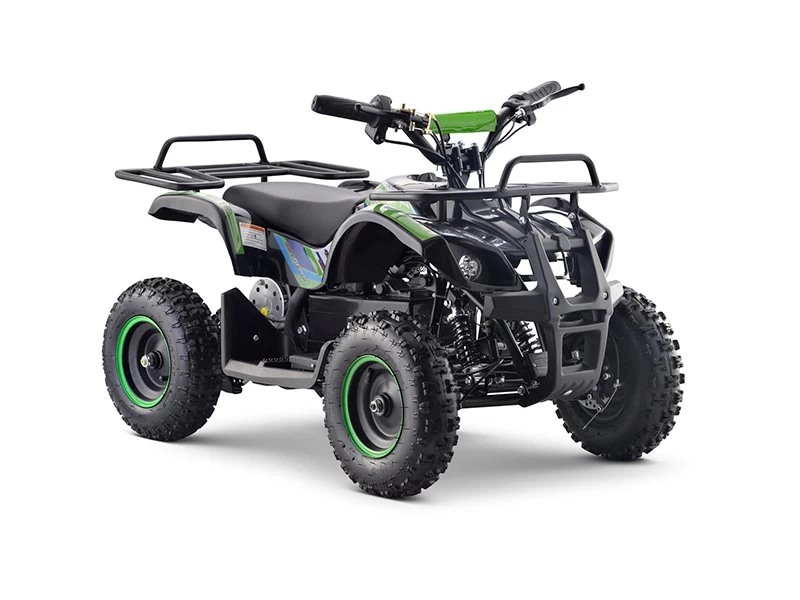

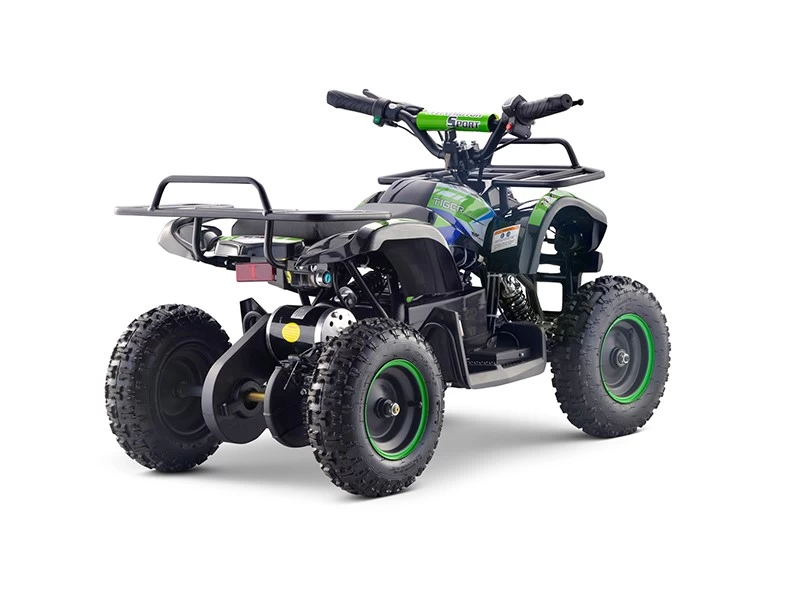

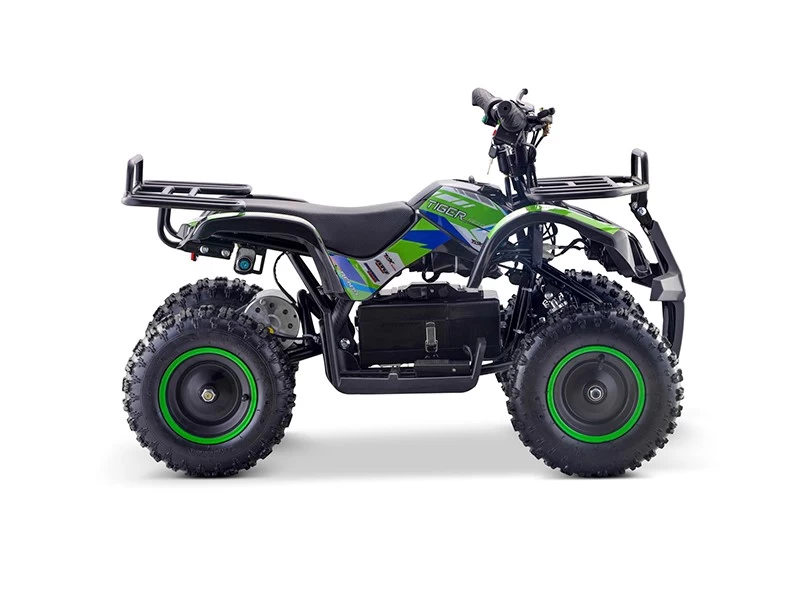

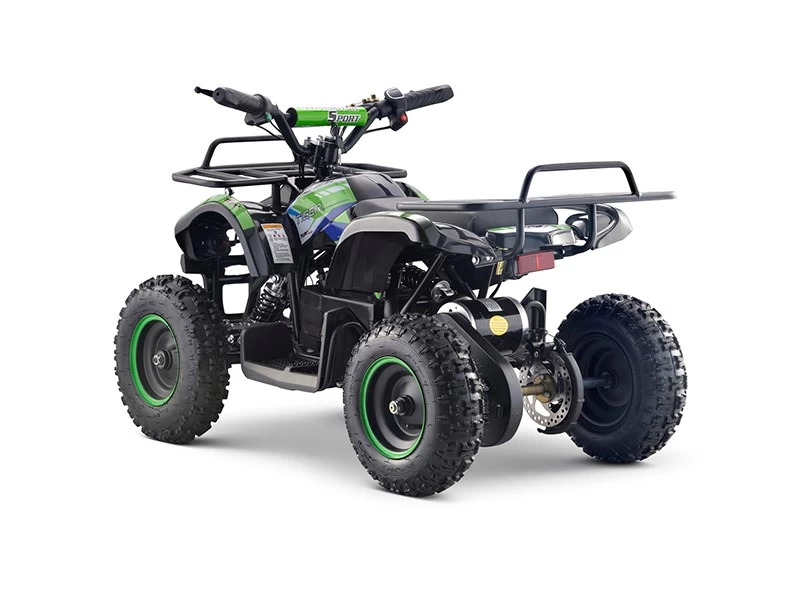

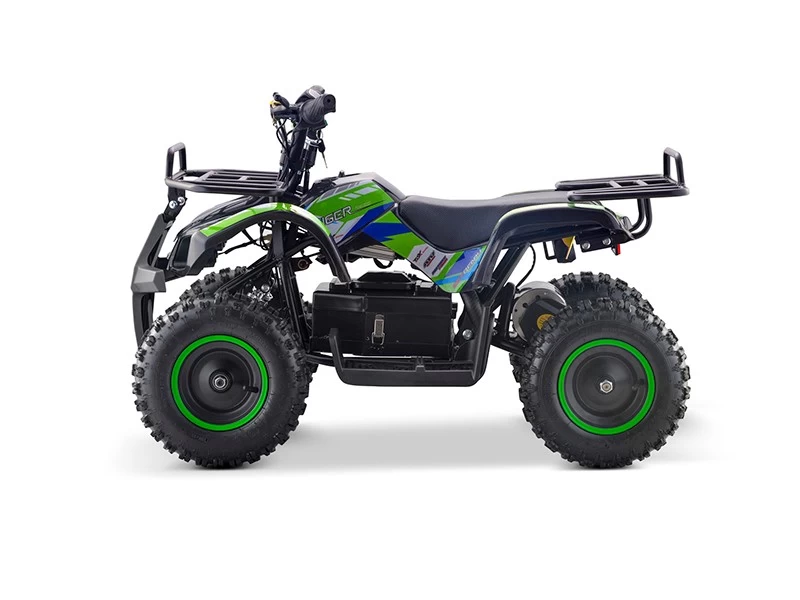

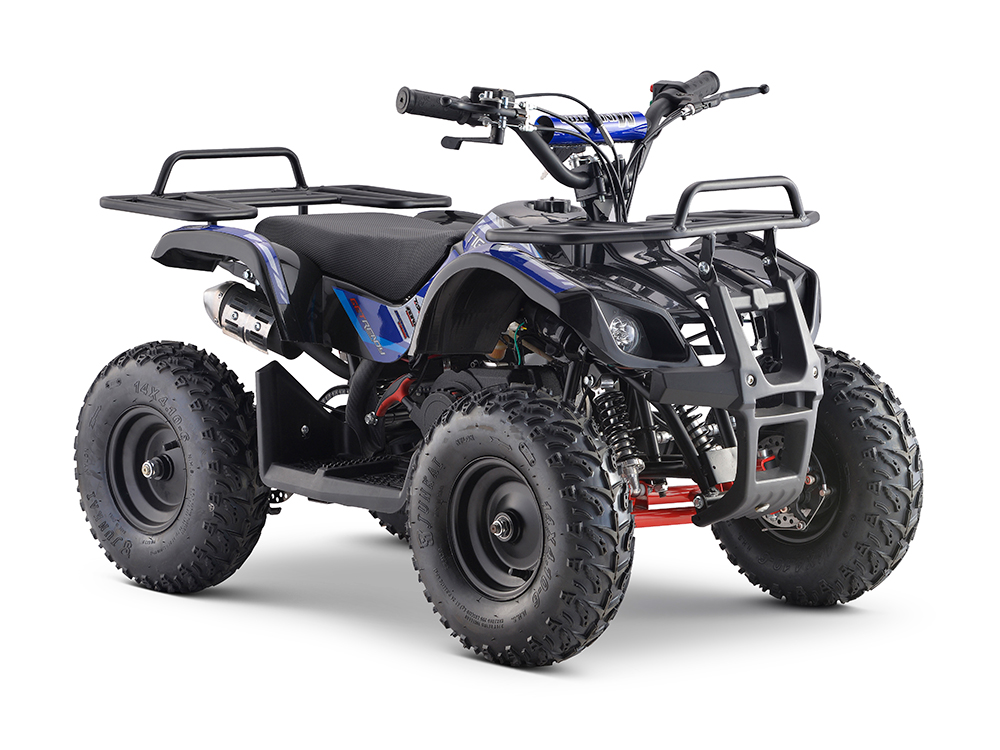

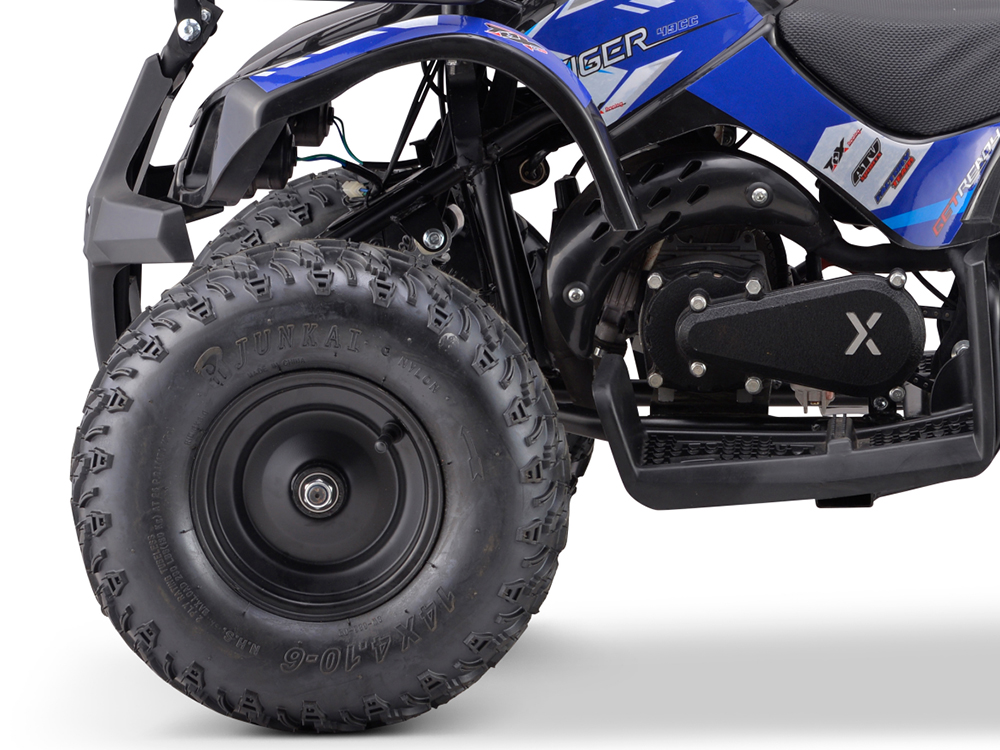

QD07Y
Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 49cc, 1 cylinder-2 stroke, air cooled |

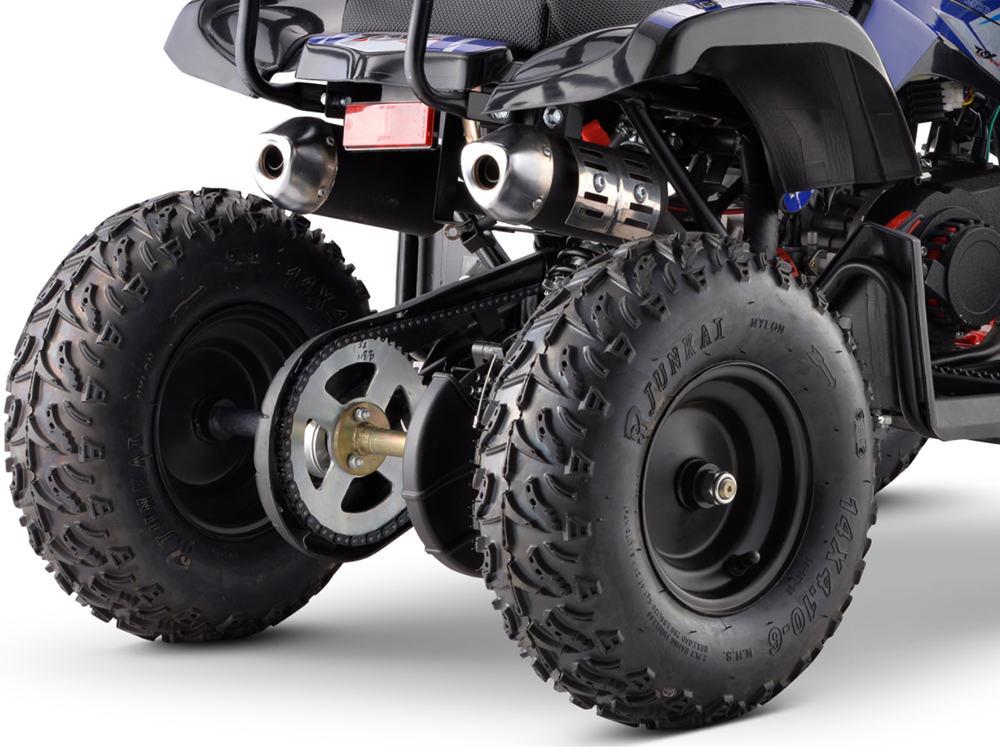

| Transmission | Chain drive, full auto clutch |
| Final Drive | 13T/54T, T8F# chain |
| Starting System | Manual pull start |
| Optional | Electric start with 12V4Ah battery |
| Fuel Tank Volume | 1L |

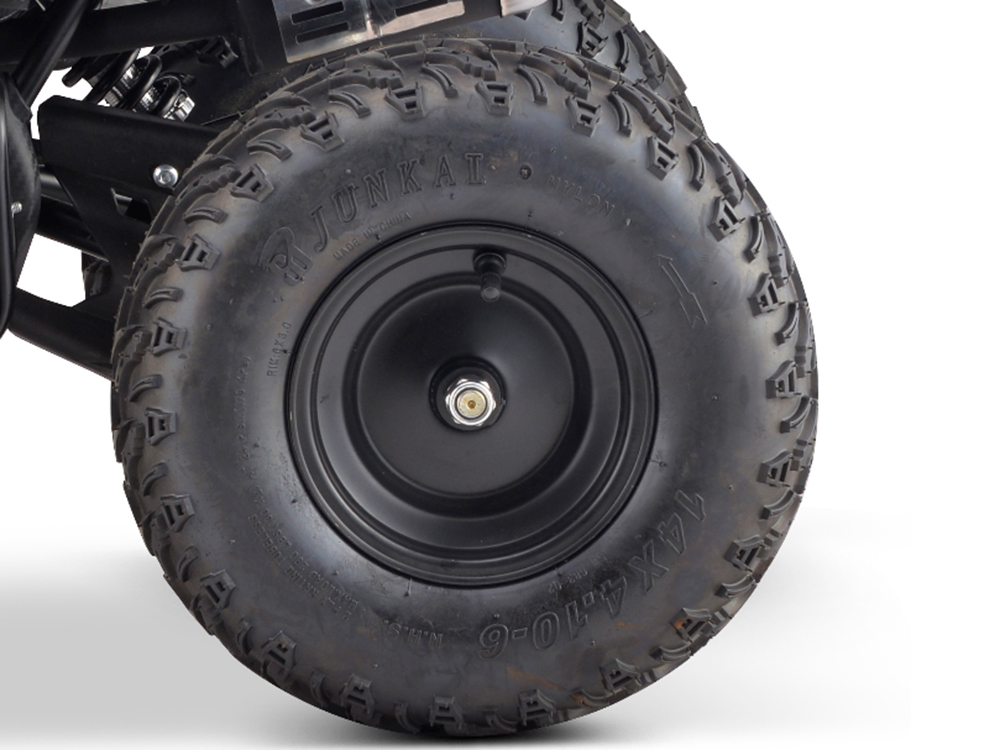

| Tires | Front 4.10-6'' and rear 13x5.00-6'' |
| Optional | Front & Rear 3.00-4 |
| Brake System | Front 2 disc brakes and rear 1 disc brake |
| Suspension | Front double mechanical damper Rear mono shock absorber |
| Max Speed | 40kmph |
| Max Load Capacity | 60kgs |
| Wheelbase | 690mm |
| Seat Height | 450mm |
| Min Ground Clearance | 55mm |
| Dry Weight | 35kgs |
| Carton Size | 1005x620x425mm |
| QTY/Container | 100pcs/20FT, 250pcs/40HQ |
