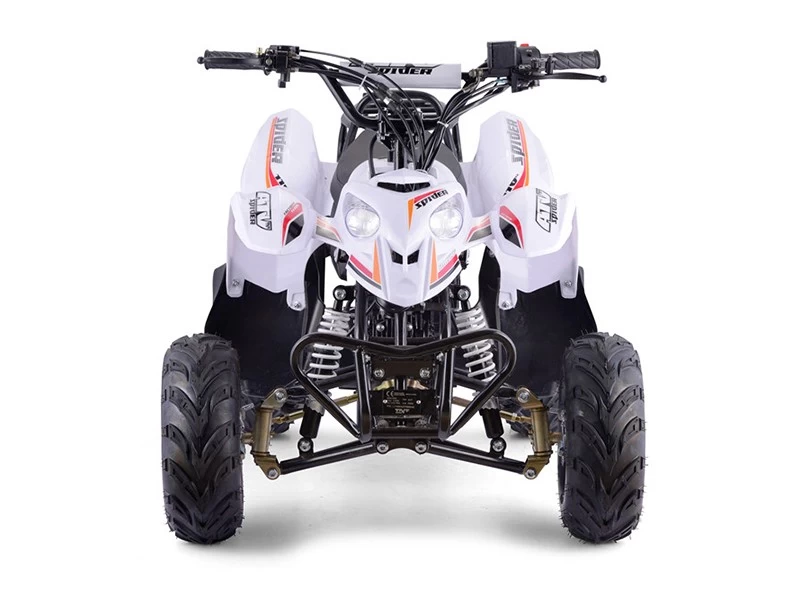

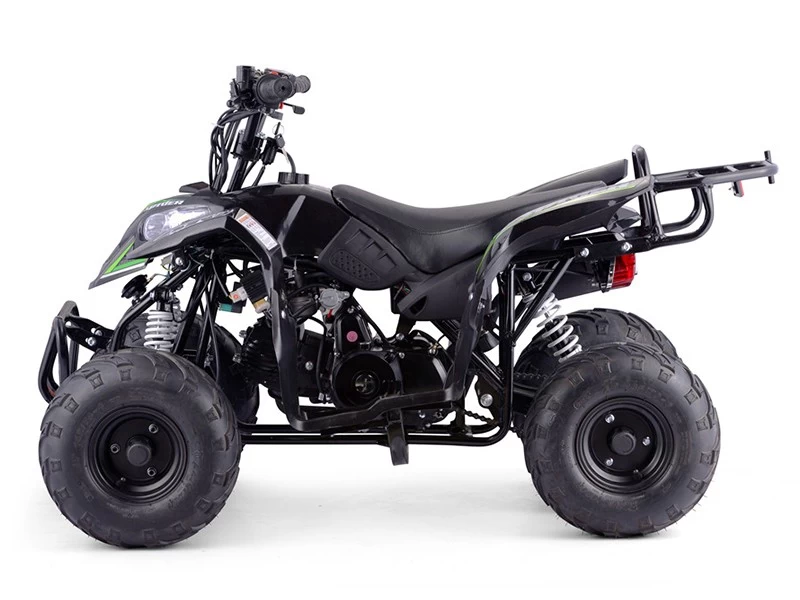

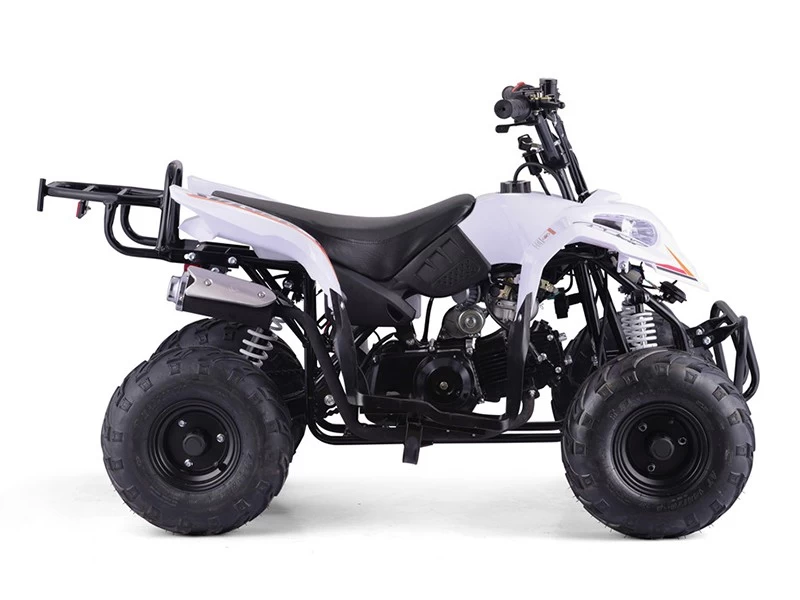

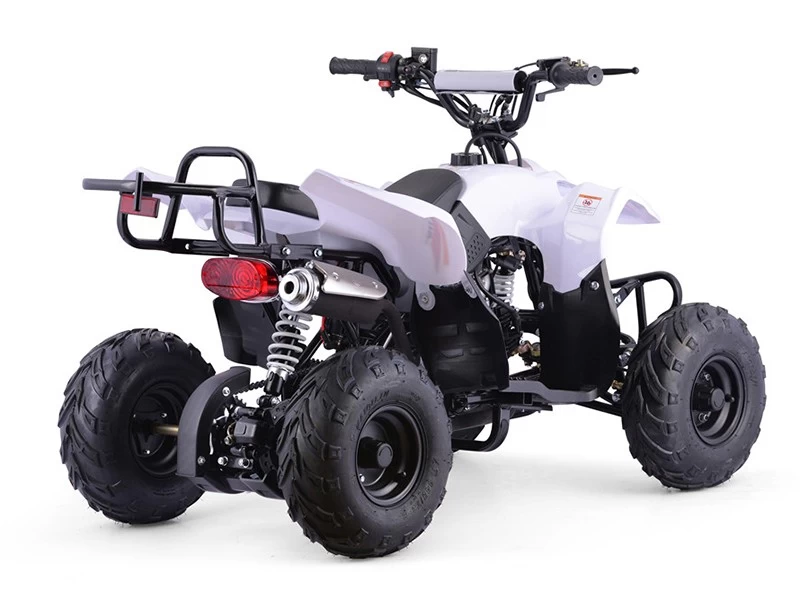

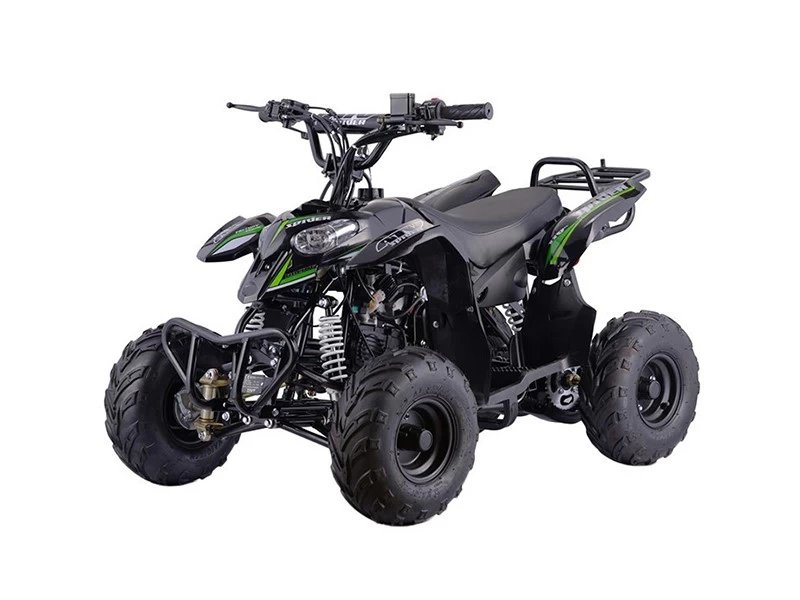

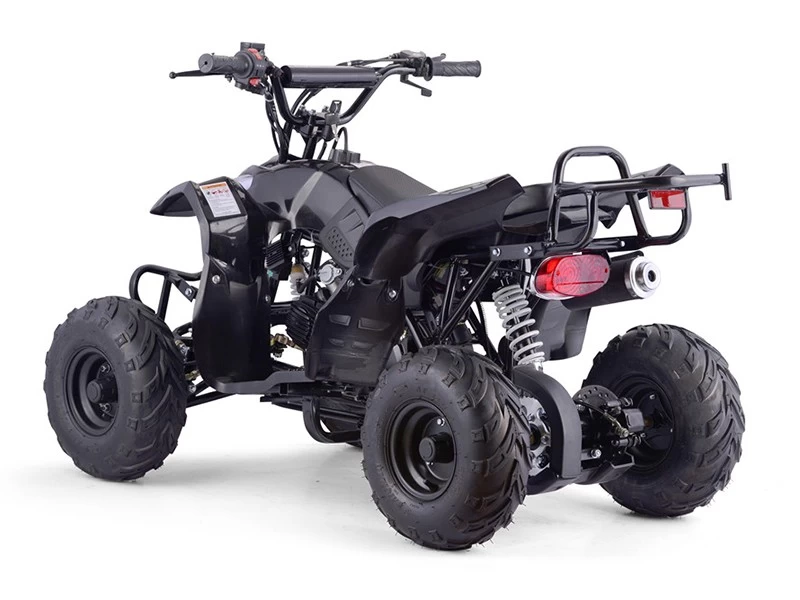

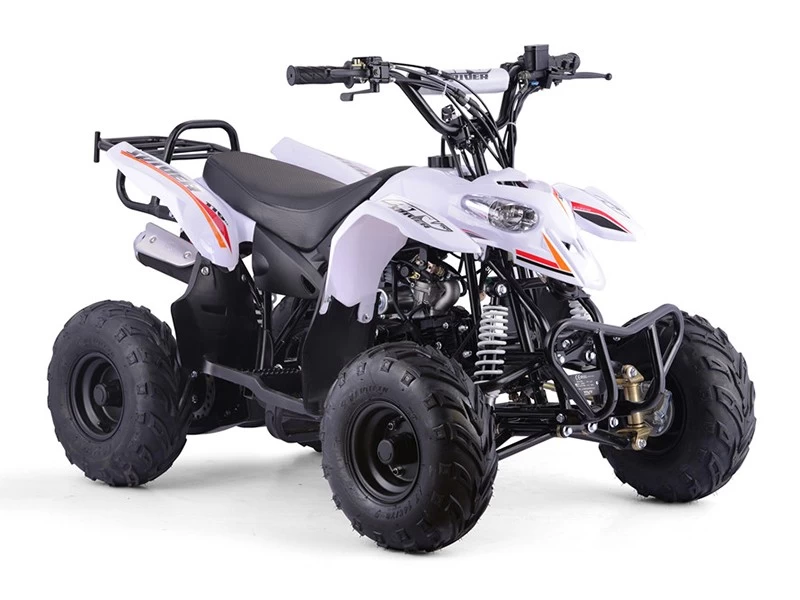

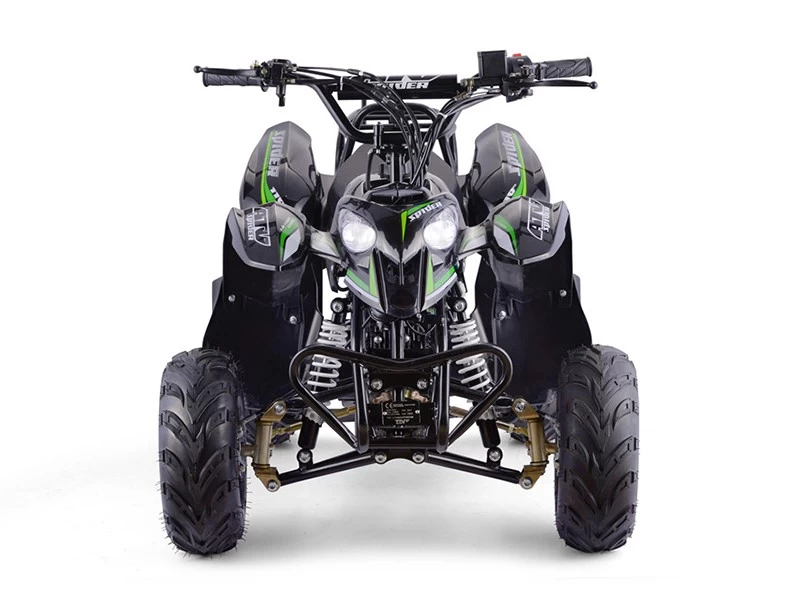

A502
Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 100cc, 1 cylinder-4 stroke, air cooled |
| Transmission | Chain drive, full auto clutch |
| Final Drive | 13T/37T, 420# chain |
| Starting System | Electric start only |
| Fuel Tank Volume | 2L |
| Battery | 12V 5Ah |
| Tires | Front & rear 14.5x7-6 |
| Optional | Front & Rear 16x8-7 |
| Brake System | Front drum brakes and rear hydraulic disc brake |
| Suspension | A swing arm with double shock absorber Rear mono shock absorber |
| Max Speed | 55kmph |
| Max Load Capacity | 75kgs |
| Wheelbase | 880mm |
| Seat Height | 560mm |
| Min Ground Clearance | 90mm |
| Dry Weight | 80kgs |
| Carton Size | 1150x760x640mm |
| QTY/Container | 42pcs/20FT, 122pcs/40HQ |
