A503

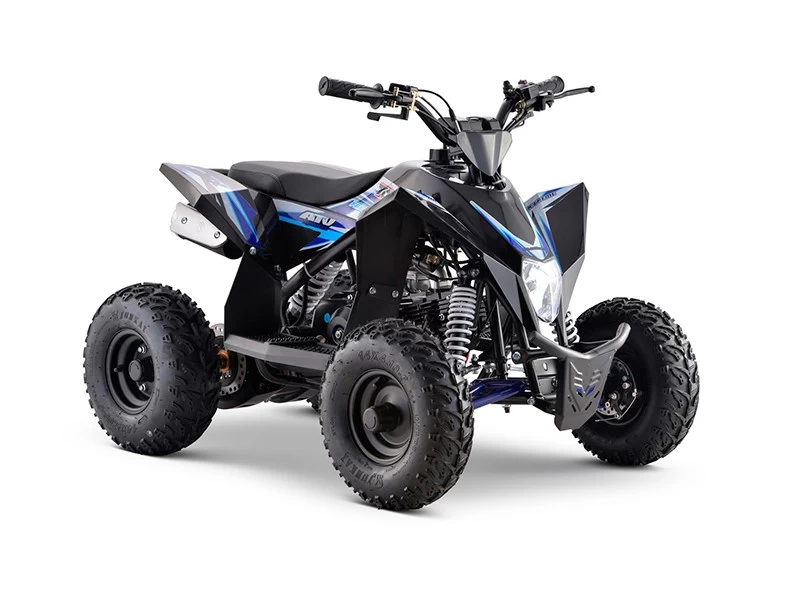

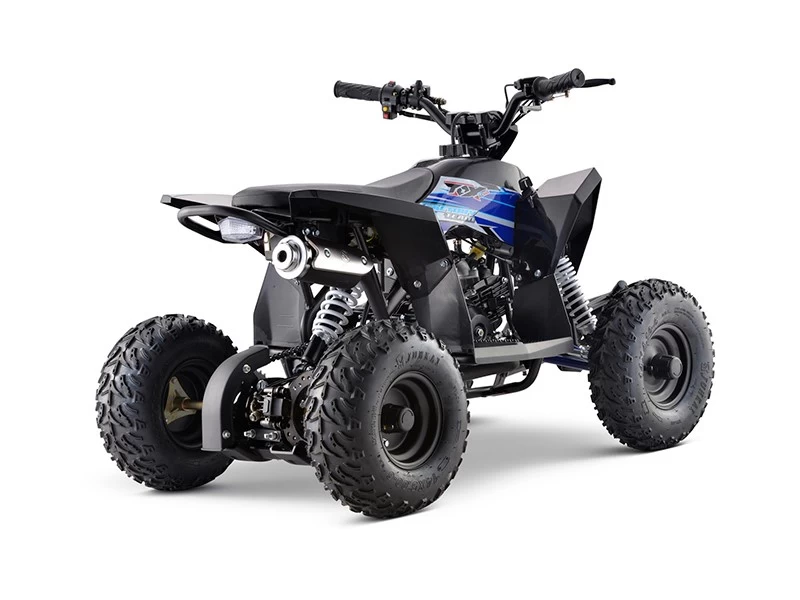

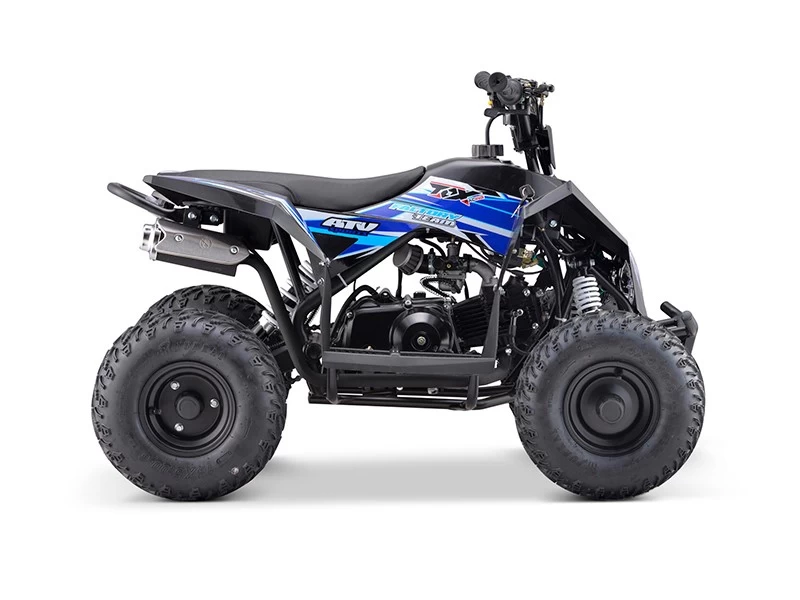

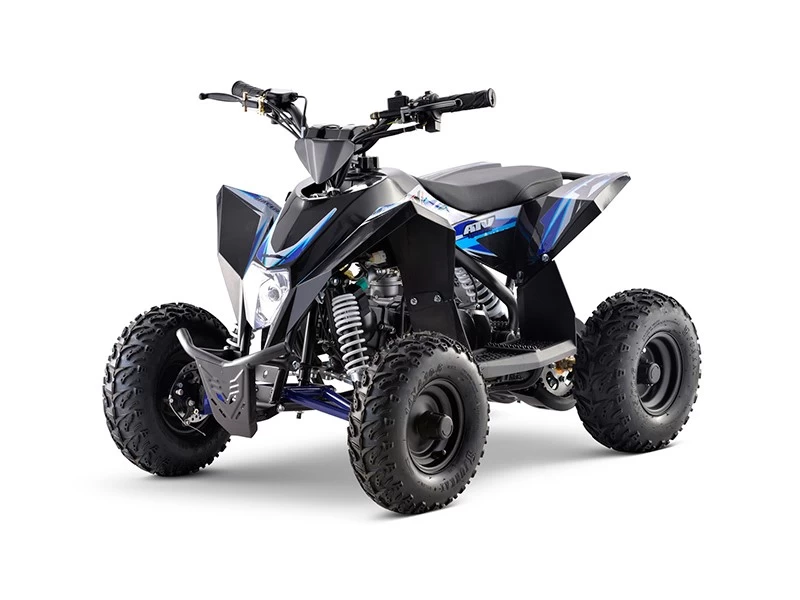

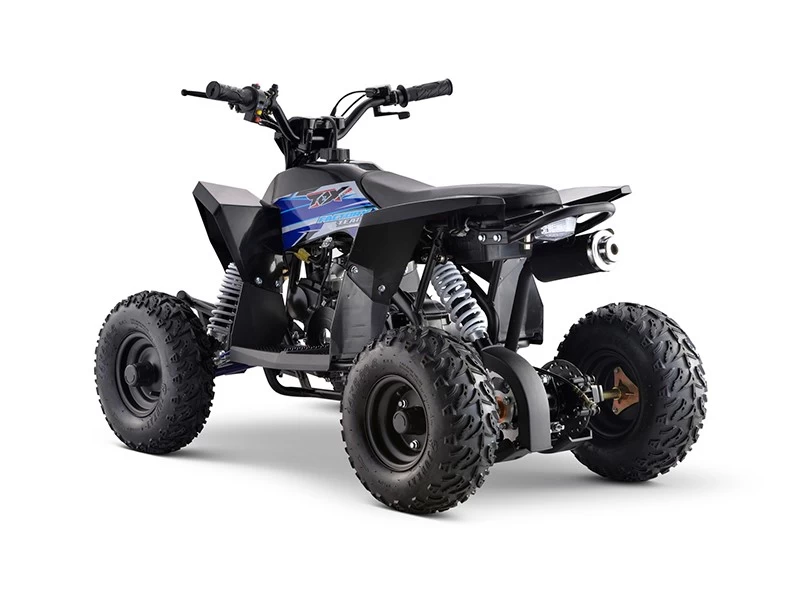

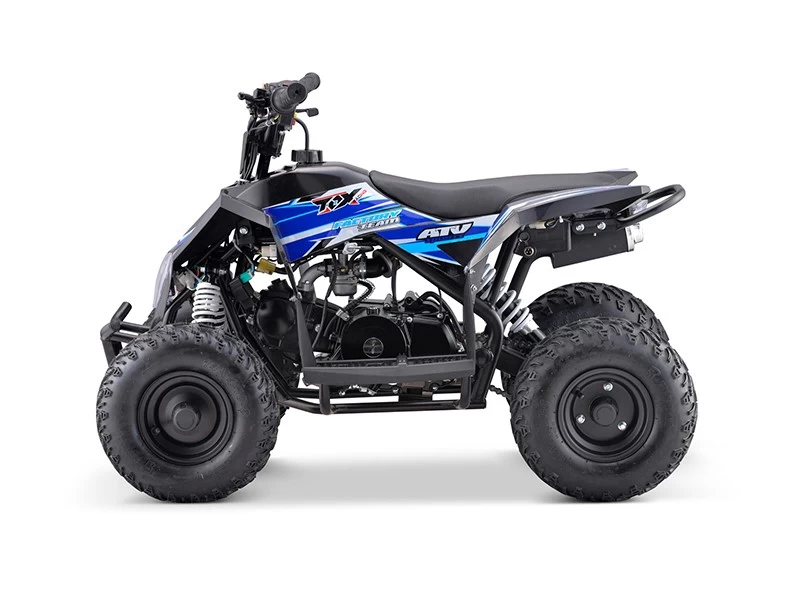

Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 70cc, 1 cylinder-4 stroke, air cooled |
| Optional | 90cc/110cc, 1 cylinder-4 stroke, air cooled |
| Transmission | Chain drive, full auto clutch |
| Final Drive | 14T/37T, 420# chain |
| Starting System | Electric start only |
| Fuel Tank Volume | 2L |
| Battery | 12V 4Ah |
| Tires | Front 14x4.10-6'', rear 14x5.00-6'' |
| Suspension | Hydraulic shock absorber Front a swing arm rear mono shock |
| Max Speed | 45kmph |
| Max Load Capacity | 65kgs |
| Wheelbase | 750mm |
| Seat Height | 540mm |
| Min Ground Clearance | 130mm |
| Dry Weight | 62kgs |
| Carton Size | 1040x630x520mm |
| QTY/Container | 80pcs/20FT, 200pcs/40HQ |
