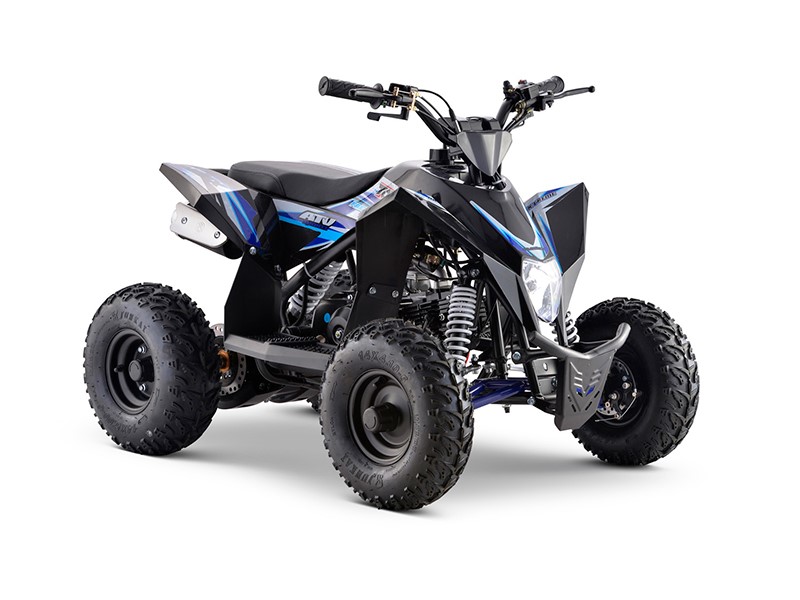

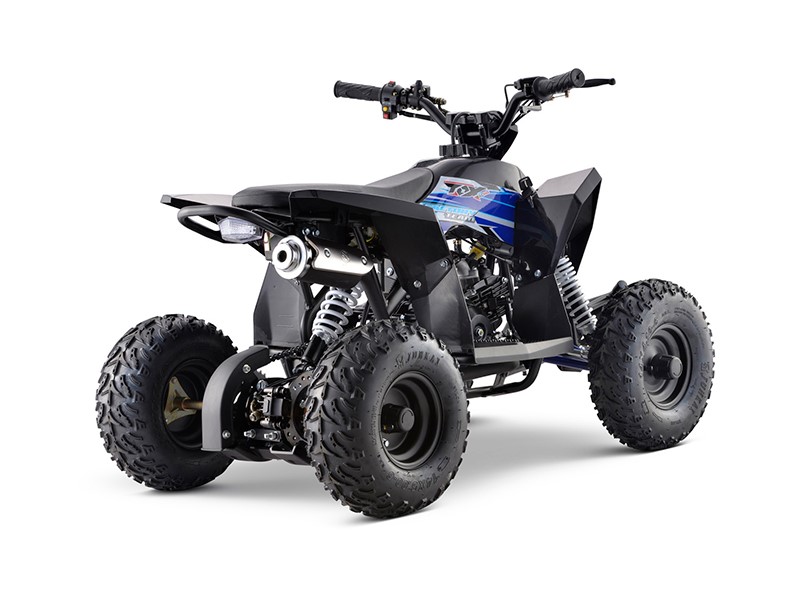

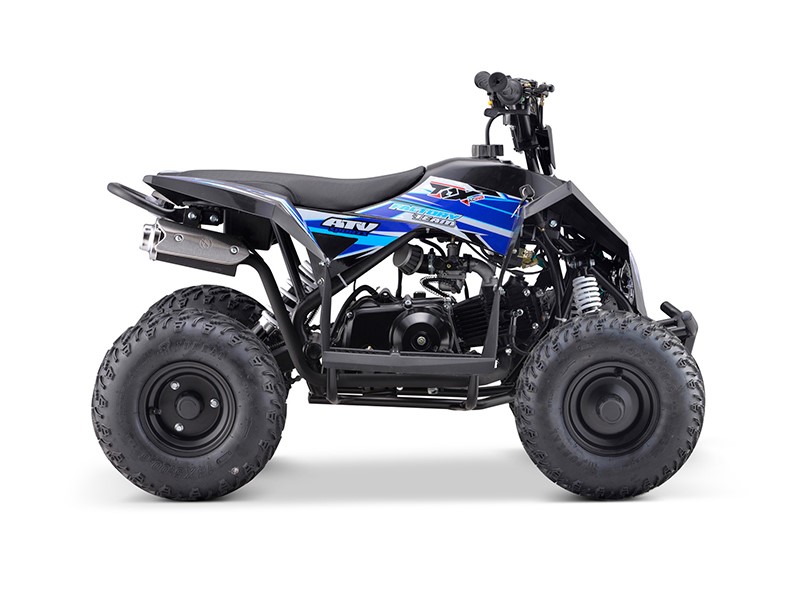

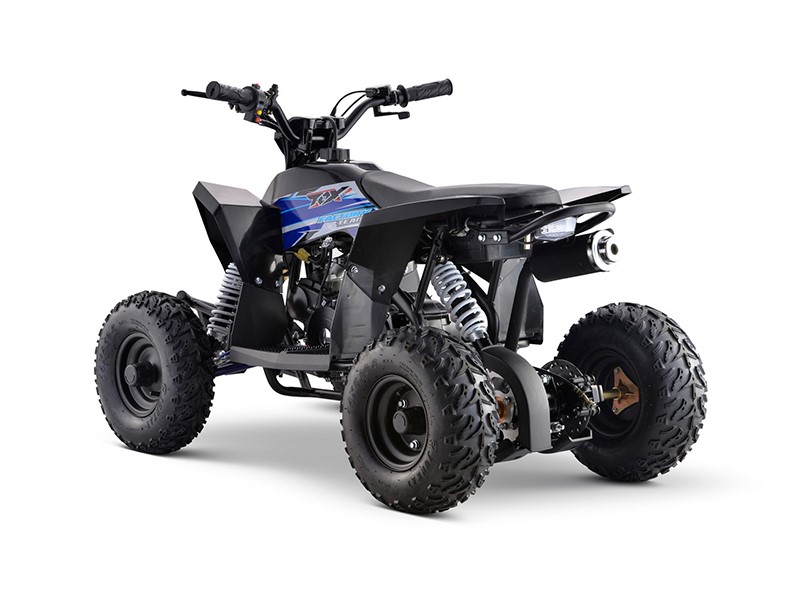

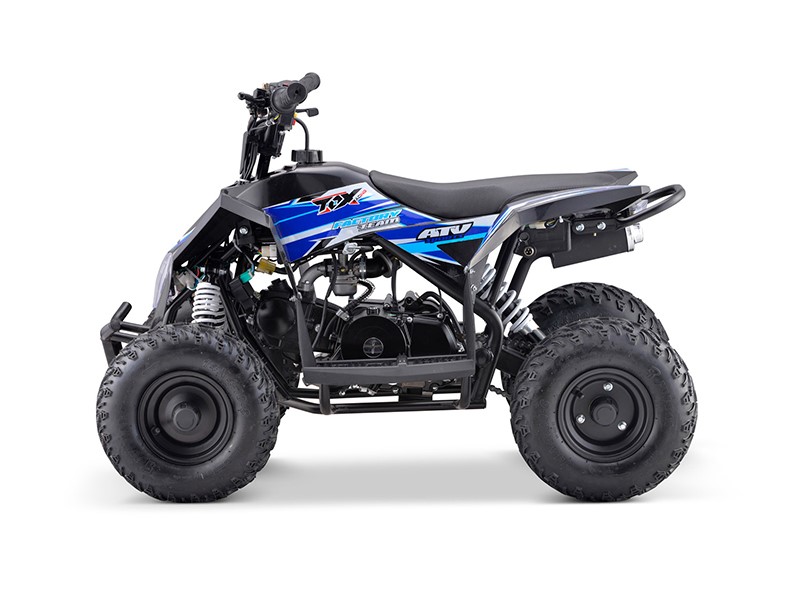

A503

ATV


Engine70cc, 1 cylinder-4 stroke, air cooled
Optional90cc/110cc, 1 cylinder-4 stroke, air cooled
TransmissionChain drive, full auto clutch
Final Drive14T/37T, 420# chain
Starting SystemElecrtic start only
Fuel Tank Volume
2L
Battery
12V 4Ah
TiresFront 14x4.10-6'',  rear 14x5.00-6''
Suspension

Hydraulic shock absorber

Front a swing arm rear mono shock

Max Speed45kmph
Max Load Capacity65kgs
Wheelbase750mm
Seat Height540mm
Min Ground Clearance130mm
Dry Weight62kgs
Carton Size1040x630x520mm
QTY/Container80pcs/20FT, 200pcs/40HQ
